Transforming new chemical entities (NCEs) into effective drug molecules is a complex and challenging task [1], especially for poorly soluble BCS class II/IV drugs [2]. To enhance the oral bioavailability of these compounds, researchers often employ various optimization strategies aimed at improving solubility and permeability. For poorly soluble compounds, drug particle size reduction is considered one of the main strategies to improve absorption (Figure 1) [3].

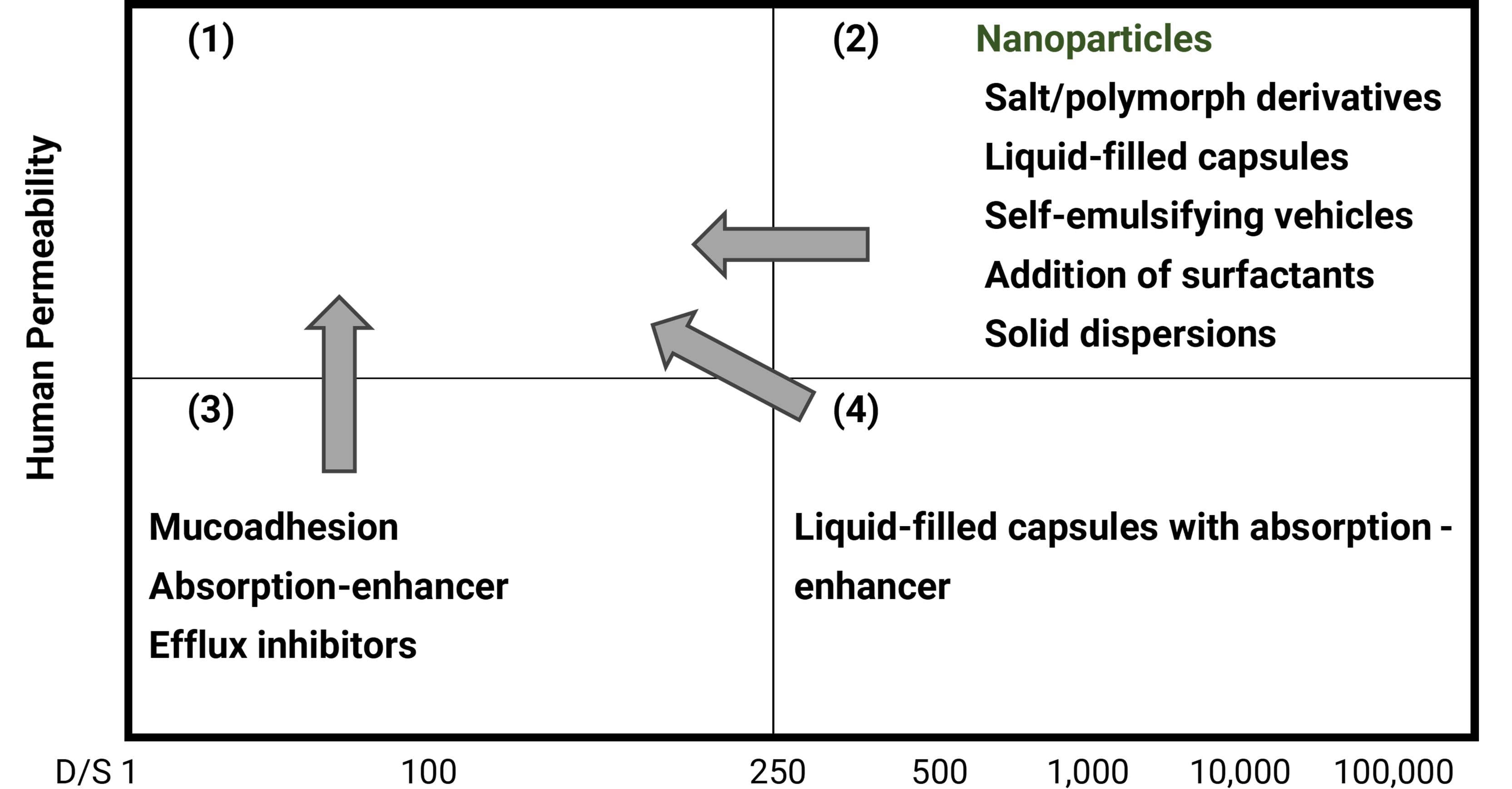

Figure 1. Optimization strategies for BCS class II-IV drugs
Particle size directly affects the adaptability, stability, and absorption rate of drug formulations in biological systems. Smaller particles provide a larger specific surface area, which not only promotes drug particle dissolution but also enhances interaction with cell membranes. Optimization strategies for drug particle size typically include micronization, nanoparticles, micro-emulsification, and solid dispersion techniques. For compounds with low oral bioavailability due to poor solubility, particle size reduction is an effective way to improve absorption, increase bioavailability, and optimize pharmacokinetic characteristics. This article discusses the impact of particle size on oral drug absorption and summarizes different particle size reduction and analysis methods and their pros and cons in preclinical studies.
Impact of Particle Size on Oral Absorption
Oral administration is the most common route in clinical applications, with solid formulations being the predominant dosage form. Drugs taken orally undergo a series of complex processes in the gastrointestinal tract, including disintegration, release, dissolution, and transport across intestinal epithelial cells, ultimately being absorbed into the systemic circulation. The absorption of oral drugs primarily relies on passive diffusion, active transport, and facilitated diffusion, and reducing particle size can effectively enhance these absorption pathways.
Particle size reduction increases the specific surface area, facilitating both the dissolution and membrane transport processes [4]. This can be achieved through various techniques like micronization and nanoparticle formation. Micronization uses mechanical force to reduce particle size, while nanoparticles are prepared through solvent exchange or phase separation processes. These techniques not only improve solubility but also affect drug distribution and bioavailability.
Case Studies on Particle Size Reduction: Nanoparticles vs. Micronization
Wu Y et al. found that a 0.12 µm formulation of aprepitant achieved a Cmax four times higher than a 5.5 µm formulation in beagle dogs, indicating that appropriate micronization can enhance drug absorption and bioavailability.

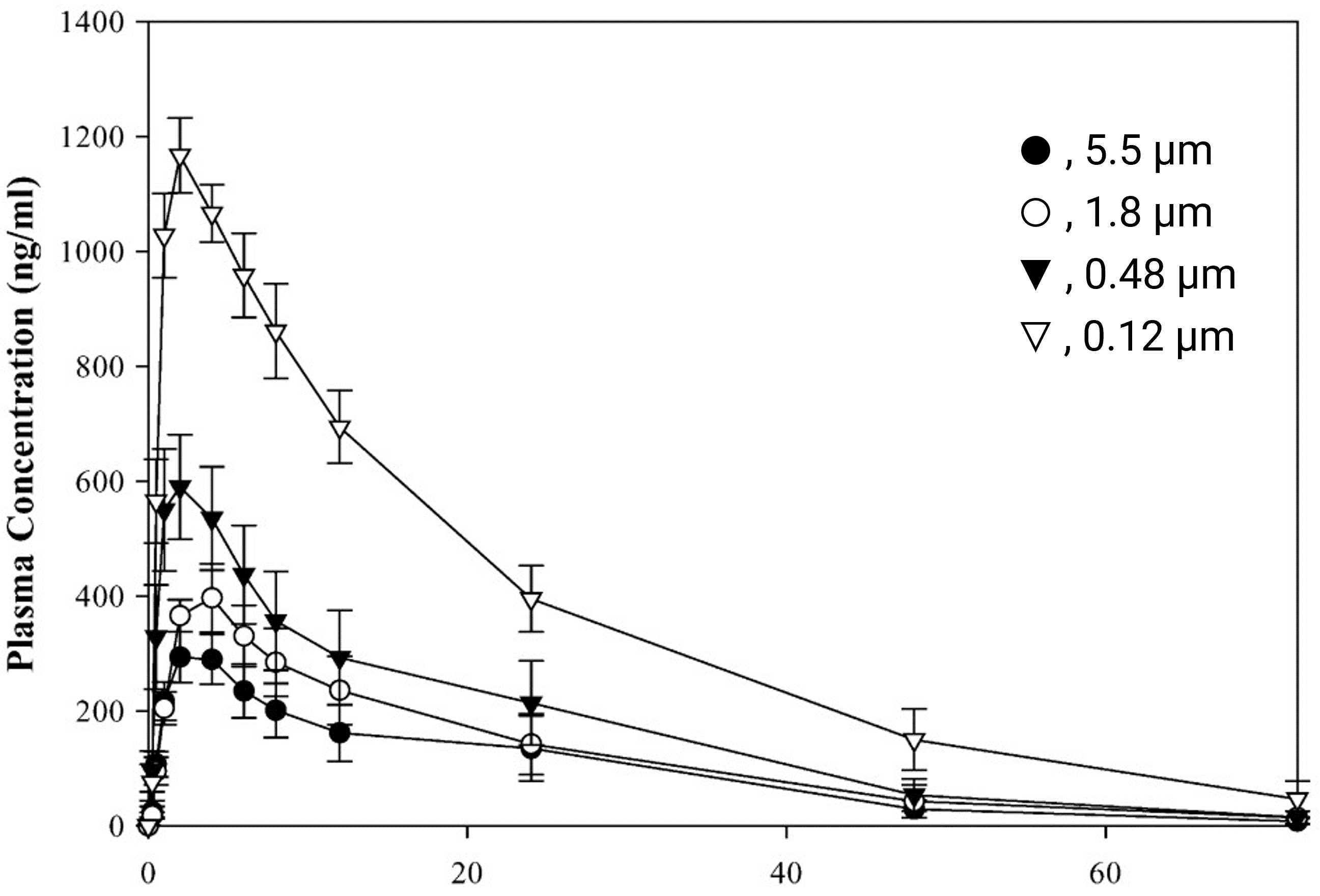

Figure 2. Plasma concentration profiles of aprepitant suspensions with different particle sizes

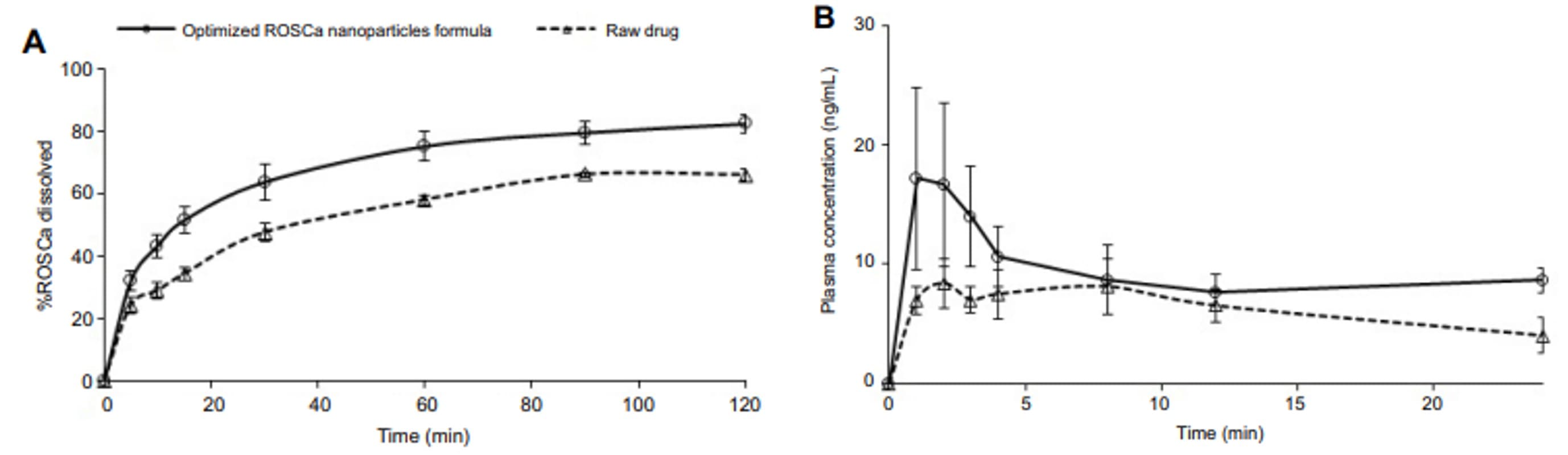

Alshora D et al. demonstrated that rosuvastatin calcium nanoparticles achieved twice the Cmax and 1.5 times the AUC of untreated drugs in rabbits, with significantly improved dissolution rates and plasma drug concentrations for ground nanoparticles.
Figure 3. Dissolution rate (A) and plasma concentration (B) profiles of untreated and ground nanoparticles
Nekkanti et al. found that in rats, nanoparticles of oral Candesartan cilexetil with a median size of 127 nm increased AUC by 2.5 times and Cmax by 1.7 times compared to micronized suspensions, also reducing Tmax from 1.81 hours to 1.06 hours.

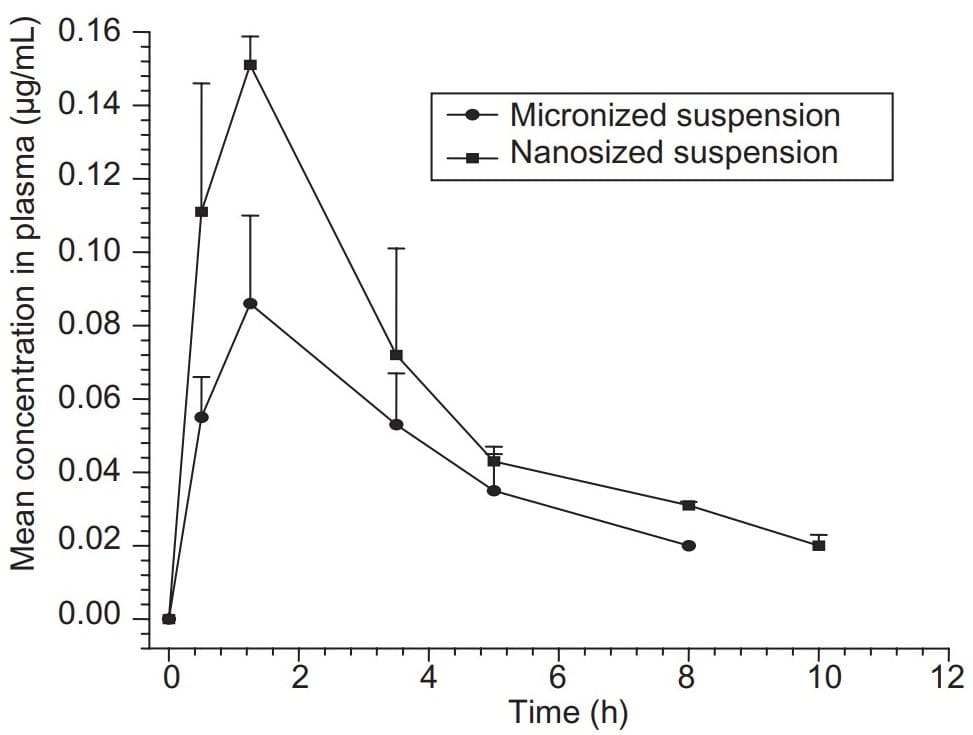

Figure 4. Plasma concentration profiles of oral candesartan cilexetil particles with different sizes in rats
These results demonstrate a direct relationship between particle size and drug absorption, underscoring the importance of controlling particle size in drug formulation development to enhance bioavailability and therapeutic efficacy.
Particle Size Reduction Enhances Dissolution

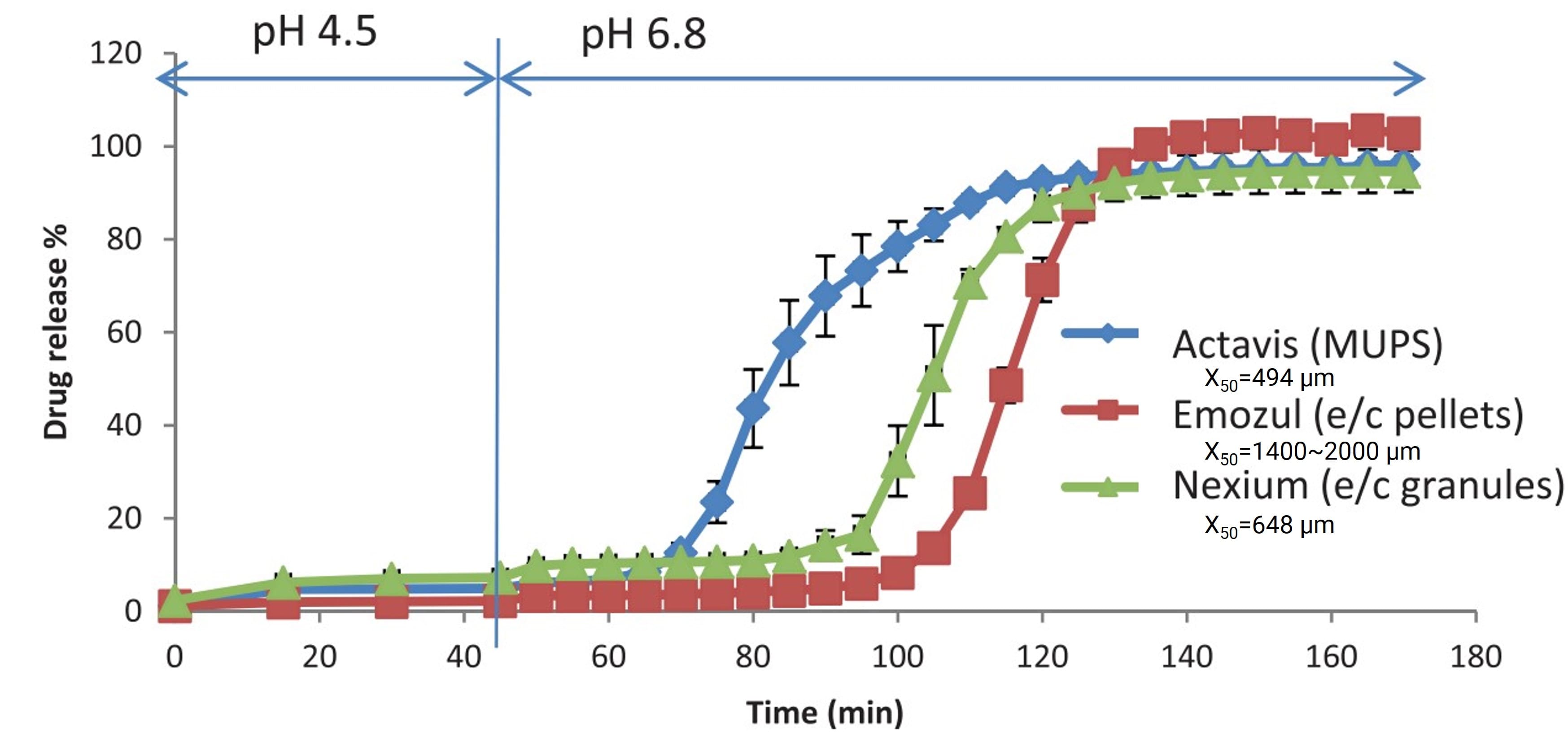

The size of drug particles directly influences their dissolution rate in the gastrointestinal tract. Studies have shown that smaller particles result in faster disintegration and drug release, thereby accelerating the dissolution process. Researchers evaluated the dissolution rates of drugs with different particle sizes (esomeprazole, a proton pump inhibitor) using laser diffraction. As shown in Figure 5, formulations with an X50 of 648 µm (Nexium) had a median dissolution time (T50) of about 61 minutes, whereas formulations with an X50 of 494 µm (Actavis) reduced T50 to about 38 minutes. The results indicate an inverse relationship between particle size and dissolution rate; smaller particles dissolve faster. Thus, optimizing particle size can effectively regulate drug solubility and improve bioavailability [8].
Figure 5. Drug release in a simulated gastrointestinal pH environment with different particle sizes
Particle Size Reduction Enhances Membrane Absorption
The transport of drugs across intestinal cell membranes involves penetrating the bilayer mucus and epithelial cell membrane. As shown in Figure 6, the mucus layer is composed of high-molecular-weight mucins with pores ranging from 10 nm to 200 nm. Adjusting drug particle size within this range can extend residence time in the mucus layer, enhancing penetration through the intestinal wall. Previous studies have shown that drugs with particle sizes below 200 nm can smoothly traverse the bilayer mucus, enter epithelial cells, and be absorbed into the blood or lymph, reaching target tissues and organs [9-11].

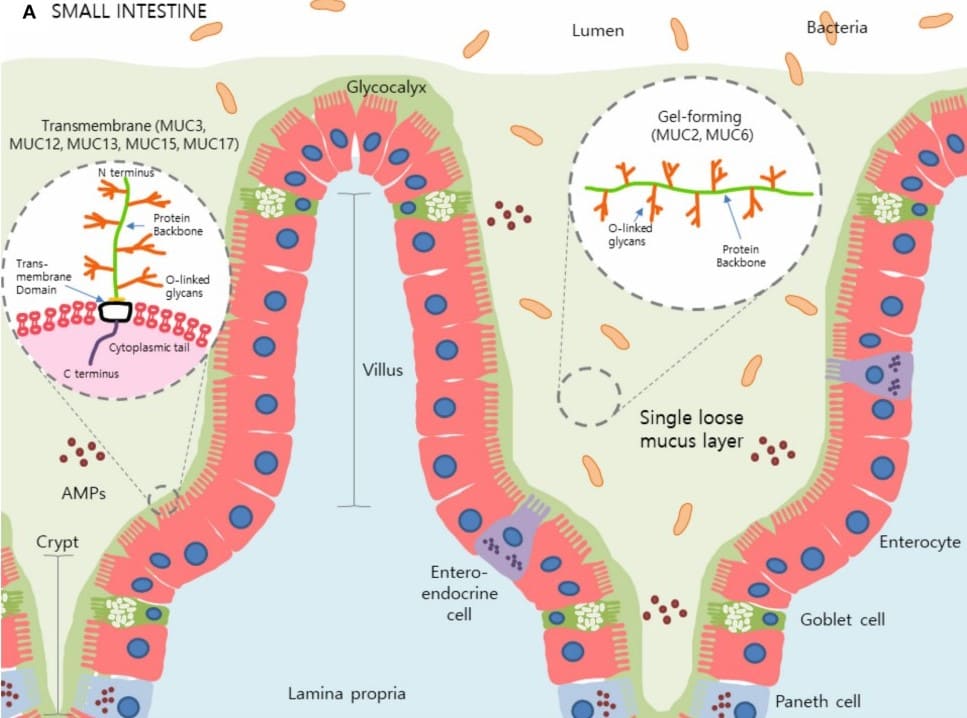

Figure 6. Schematic diagram of the small intestine structure

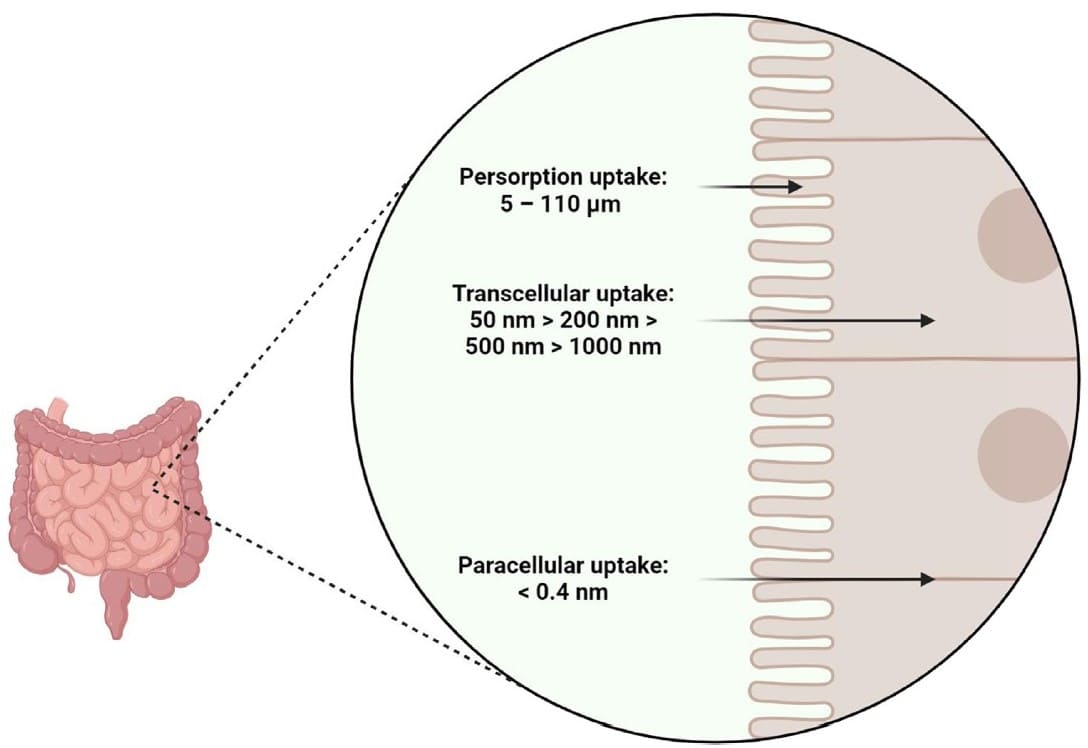

As shown in Figure 7, drug absorption in the intestine primarily involves persorption, transcellular uptake, and paracellular uptake. Studies have indicated that particle size is closely related to the efficiency of these absorption pathways [12]. However, conflicting results exist regarding the absorption of drugs with particle sizes of 50 nm and 100 nm, although it is generally believed that drugs within the 50-100 nm range are more easily absorbed by the intestine [13-16].
Figure 7. Transmembrane transport modes of intestinal epithelial cells
Comparison of Particle Size Reduction Techniques
In drug formulation development, particle size reduction is an effective strategy to enhance the bioavailability of poorly soluble drugs, applicable to both solid and liquid formulations. Various optimization strategies and methods are employed based on formulation characteristics and requirements, as shown in Table 1 [12, 17].
Table 1. Comparison of particle size reduction techniques
Method | Advantages | Disadvantages |
Ball Milling | Wide particle size distribution | High energy consumption and low efficiency |
High-Pressure Homogenization | Avoids amorphization, polymorphic transformation, and metal contamination | May require pre-micronization steps |
Spray Drying | Adjustable parameters to control particle size distribution | May cause chemical and thermal degradation |
Liquid Antisolvent Technique | Overcomes chemical and thermal degradation issues | Recovery and disposal of organic solvents |
Supercritical Fluid Micronization | Mild operating conditions, narrow particle size distribution | High cost, not suitable for large-scale production |
Organic Drug Nanotechnology | Achieves nanoscale particles | Relatively low maturity of technology |
In preclinical formulation preparation, homogenization techniques are often used for particle size reduction. Conventional homogenization techniques frequently employ ultrasonication, and high-power focused ultrasonication can effectively reduce particle size. Combining liquid antisolvent crystallization with focused ultrasonication, one can select antisolvents based on structural formulas or screening experiments, effectively enhancing drug absorption in the intestine (as shown in Table 2).
Table 2. Comparison of particle size reduction limits for different techniques
Method | Particle Size Limit |
Ball Milling | ~1000 nm |
Spray Drying | ~1000 nm |
Spray Freeze Drying | ~1000 nm |
High-Pressure Homogenization | ~100 nm |
Liquid Antisolvent Crystallization | ~100 nm |
Focused Ultrasonication | ~100 nm |
Supercritical Fluid Method | ~100 nm |
Pulsed Laser Ablation | ~10 nm |
In summary, particle size reduction techniques play a crucial role in enhancing drug absorption. When choosing a particle size reduction technique, factors such as drug characteristics, desired particle size range, and economic and technical considerations must be considered.
Comparison of Particle Size Analysis Techniques
Accurate particle size analysis is essential. Current particle size detection techniques are mainly divided into flow scanning and field scanning categories. These techniques capture photoelectric signals related to particle shape and use mathematical models to convert these signals into statistical mean values, quantitatively describing particle dimensions. However, differences may occur between instruments due to equivalent particle size, particle shape, and particle dispersion, leading to variations in particle size data. Therefore, interpreting particle size data requires detailed data analysis and appropriate mathematical descriptions [18].
Mainstream Particle Size Detection Techniques [19]
Laser Diffraction (LD) is widely used due to its fast measurement without the need for centrifugation. LD accurately measures particle size distribution but assumes spherical particles, which may lead to significant bias for non-spherical particles. Additionally, sample dilution is generally required to obtain accurate results, possibly affecting particle interactions, especially with complex samples.
Dynamic Light Scattering (DLS) is suitable for analyzing complex samples, including non-spherical and self-aggregating particles, providing information about particle size and shape, and handling higher sample concentrations. However, DLS is relatively complex to operate, usually requiring centrifugation, and its results also assume spherical particles, which may lead to measurement bias for non-spherical particles and limit concentration analysis of non-self-aggregating particles.
Scanning Electron Microscopy (SEM) allows direct observation of particle size and shape without sample dilution. Although SEM provides high-resolution images, it is cumbersome to operate and not suitable for large-scale sample processing. The limited field of view may increase statistical errors, and distinguishing overlapping particles is challenging.
Transmission Electron Microscopy (TEM) provides three-dimensional information for overlapping particles, and is suitable for direct observation of particle size and shape. However, TEM operation is also cumbersome, not suitable for large-scale sample processing, and may result in significant statistical errors.
Comparison of Detection Ranges for Mainstream Particle Size Analysis Techniques
The comparison of the detection ranges for the above particle size detection techniques is summarized in Figure 8.

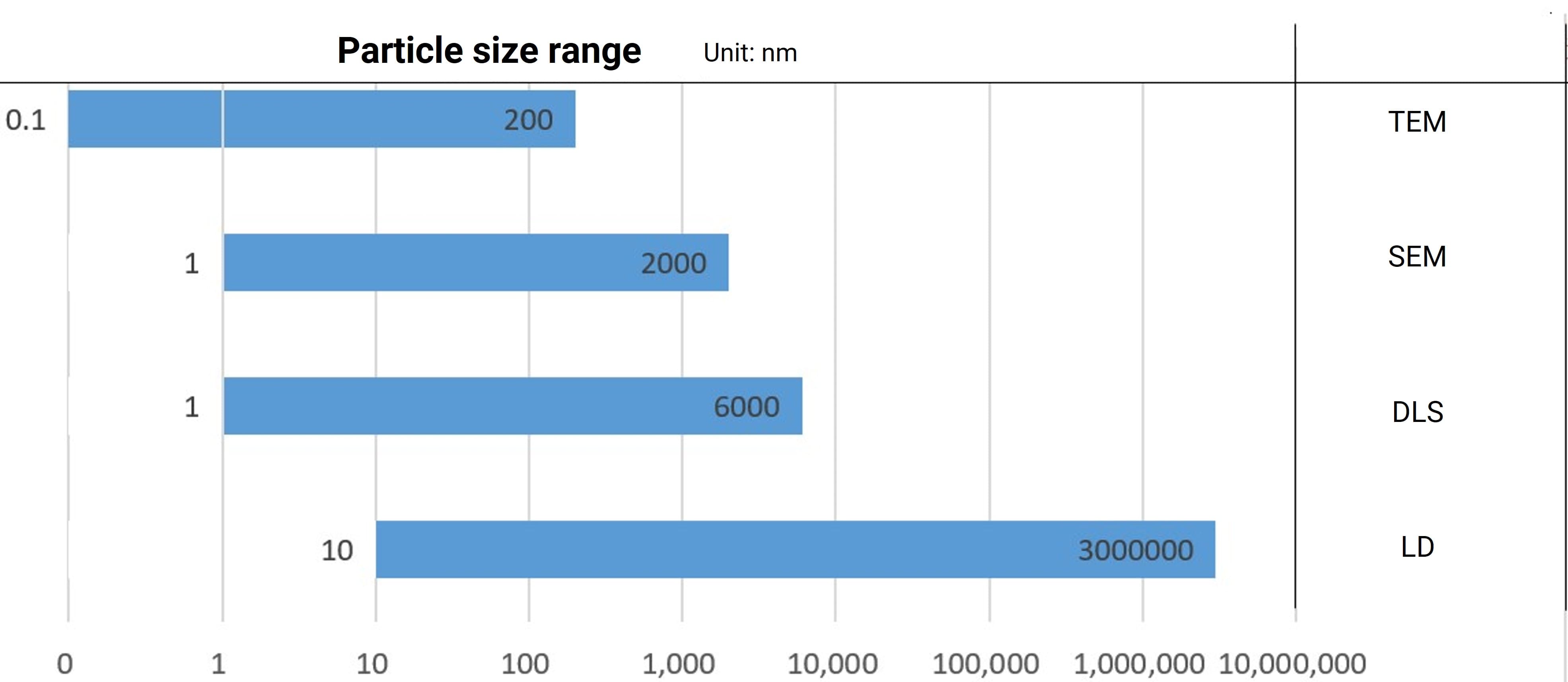

Figure 8. Comparison of detection ranges for mainstream particle size analysis techniques
In summary, different particle size detection techniques have different advantages and limitations. Selecting the appropriate technique requires considering sample characteristics, analysis objectives, and experimental conditions. In drug formulation development, the comprehensive use of multiple techniques to improve analysis accuracy and reliability is crucial.
Case Study of Particle Size Reduction and Determination Techniques
In this experiment, we selected the commercial compound Cinnarizine for preparation, aiming to achieve a formulation with particle sizes below 200 nm. The solvent-antisolvent precipitation method was used, and a focused ultrasonication device (Covaris) was employed for particle size reduction. The treated particle size was subsequently measured using a Malvern analyzer, achieving the expected nanoscale formulation. As shown in Figure 9, the particle size distribution range after ultrasonication ranged from 10 nm and 10,000 nm, with a median particle size (X50) of approximately 200 nm, successfully reducing the particle size into the expected range.

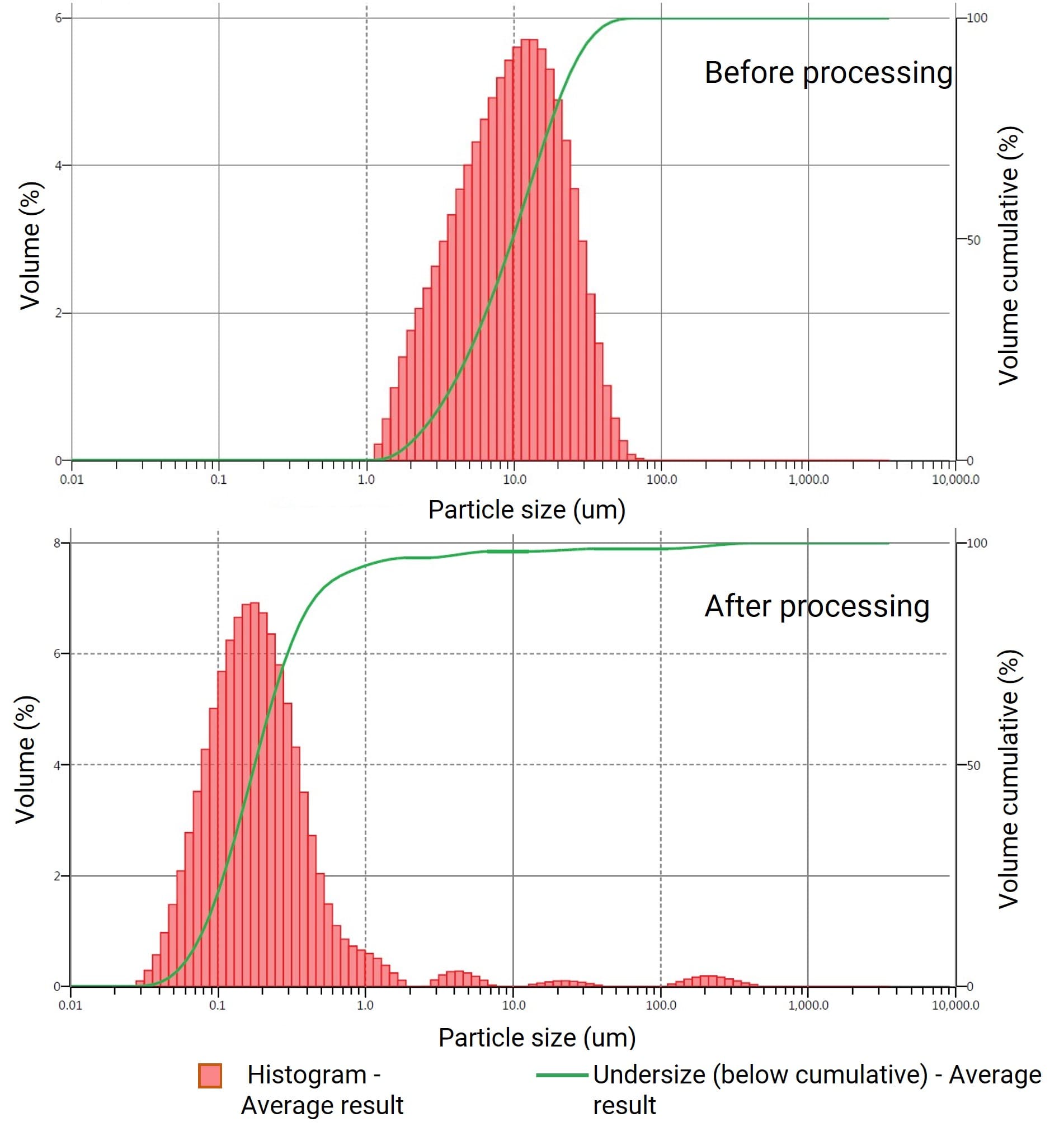

Figure 9. Particle size distribution in validation experiments
The experiment used Covaris's focused ultrasonication device (as shown in Figure 10, left) for particle size reduction. This device utilizes Covaris's Adaptive Focused Acoustics (AFA) technology, providing precise adaptive acoustic energy control. During the experiment, the device precisely controlled cavitation and acoustic streaming within the sample processing container, generating and transmitting focused acoustic energy to individual samples. This process led to a series of controlled compression and rarefaction events, achieving non-contact, isothermal acoustic processing of the sample without damaging it. The experimental parameters are shown in Table 3.
Table 3. Experimental conditions for nanoparticle preparation
Duration | 4500 seconds |
Bath Temperature | 10℃ |
Power Mode | Frequency sweeping |
Degassing Mode | Continuous |
Volume | 8mL (19x38 vessel) |
The particle size analysis was conducted using the Mastersizer 3000 laser particle size analyzer (Figure 10, right). This instrument employs a patented folded optical path design and coaxial dual light source technology, enabling detection of particles ranging from 10 nm to 3.5 mm. The instrument demonstrated verifiable accuracy and repeatability, exceeding the recommended standards of ISO 13320:2009 and USP <429>.

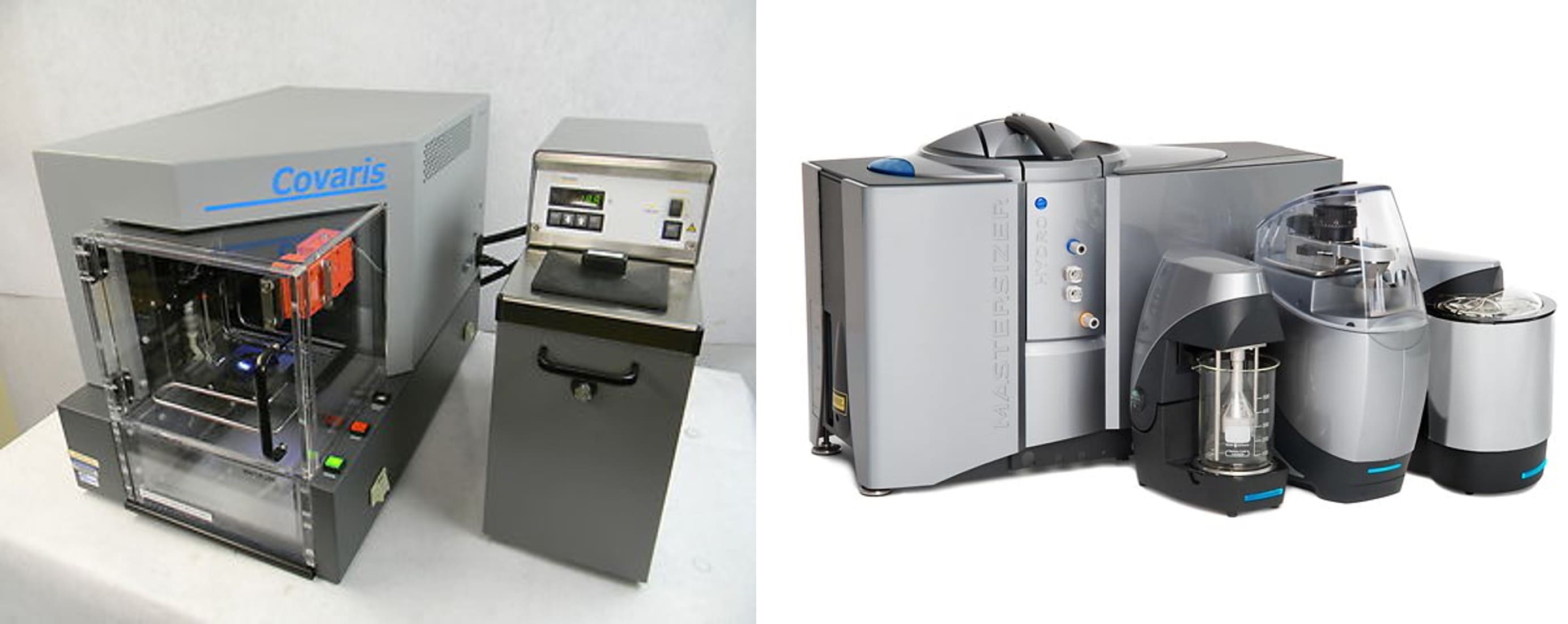

Figure 10. Covaris ultrasonicator (left) and Mastersizer particle size analyzer (right)
Concluding Remarks
Particle size reduction can significantly improve the poor gastrointestinal absorption of poorly soluble drugs. Numerous established methods can effectively reduce compound particle size. In preclinical studies, due to the limited amount of compound and formulation volume, focused ultrasonication combined with laser diffraction detection analysis can efficiently achieve particle size reduction and rapid distribution measurement, making them relatively optimal experimental methods for preclinical evaluation. Moreover, particle size research is closely linked with drug efficacy and safety, and is an indispensable part of drug formulation development. It is crucial for accelerating new drug development and enhancing drug quality. WuXi AppTec DMPK has comprehensive preclinical compound particle size reduction and detection technologies, combined with preclinical in vivo pharmacokinetic experiments, to evaluate the impact of particle size reduction on in vivo bioavailability and pharmacokinetic characteristics, aiding drug development progress.
Authors: Yuan Wen, Quanli Feng, Furong Jiao, Cheng Tang
Talk to a WuXi AppTec expert today to get the support you need to achieve your drug development goals.
Committed to accelerating drug discovery and development, we offer a full range of discovery screening, preclinical development, clinical drug metabolism, and pharmacokinetic (DMPK) platforms and services. With research facilities in the United States (New Jersey) and China (Shanghai, Suzhou, Nanjing, and Nantong), 1,000+ scientists, and over fifteen years of experience in Investigational New Drug (IND) application, our DMPK team at WuXi AppTec are serving 1,600+ global clients, and have successfully supported 1,700+ IND applications.
Reference
[1] Stegemann S, Moreton C, Svanbäck S, et al. Trends in oral small-molecule drug discovery and product development based on product launches before and after the Rule of Five. Drug Discovery Today. 2023;28(2):103344.
[2] Bhalani, D.V.; Nutan, B.; Kumar, A.; Singh Chandel, A.K. Bioavailability Enhancement Techniques for Poorly Aqueous Soluble Drugs and Therapeutics. Biomedicines. 2022;10:2055.
[3] Sopyan, I., Gozali, D., Megantara, S., Wahyuningrum, R., & Sunan Ks, I. Review: An Effort to Increase the Solubility and Dissolution of Active Pharmaceutical Ingredients. International Journal of Applied Pharmaceutics. 2022;14(1):22-27.
[4] Fincher JH. Particle size of drugs and their relationship to absorption and activity. Journal of pharmaceutical sciences. 1968;57(11):1825-1835.
[5] Wu Y, Loper A, Landis E, et al. The role of biopharmaceutics in the development of a clinical nanoparticle formulation of MK-0869: a Beagle dog model predicts improved bioavailability and diminished food effect on absorption in humans. Int J Pharm. 2004 Nov 5;285(1-2):135-46.
[6] Alshora D, Ibrahim M, Elzayat E, et al. Defining the process parameters affecting the fabrication of rosuvastatin calcium nanoparticles by planetary ball mill. International Journal of Nanomedicine. 2019;4625-4636.
[7] Nekkanti, V.; Pillai, R.; Venkateswarlu, V. & Harisudhan, T. (2009b). Development and characterization of solid oral dosage form incorporating candesartan nanoparticles. Pharmaceutical Development Technology. 2009;14(3):290–298.
[8] Liu F, Shokrollahi H. In vitro dissolution of proton-pump inhibitor products intended for paediatric and geriatric use in physiological bicarbonate buffer. Int J Pharm. 2015 May;485(1-2):152-159.
[9] Grondin JA, Kwon YH, Far PM, Haq S, Khan WI. Mucins in Intestinal Mucosal Defense and Inflammation: Insights from Clinical and Experimental Studies. Front Immunol. 2020;11:2054.
[10] Yildiz HM, McKelvey CA, Marsac PJ, Carrier RL. Size selectivity of intestinal mucus to diffusing particulates is dependent on surface chemistry and exposure to lipids. J Drug Target. 2015;23:768-774.
[11] Florek J, Caillard R, Kleitz F. Evaluation of mesoporous silica nanoparticles for oral drug delivery - current status and perspective of MSNs drug carriers. Nanoscale. 2017;9(40):15252-15277.
[12] Guo S, Liang Y, Liu L, et al. Research on the fate of polymeric nanoparticles in the process of the intestinal absorption based on model nanoparticles with various characteristics: size, surface charge and pro-hydrophobics. Journal of Nanobiotechnology, 2021;19:1-21.
[13] Mok ZH. The Effect of Particle Size on Drug Bioavailability in Various Parts of the Body. Pharm Sci Adv. 2023;100031.
[14] Bouchoucha M, Côté MF, Gaudreault RC, Fortin MA, Kleitz F. Size-Controlled Functionalized Mesoporous Silica Nanoparticles for Tunable Drug Release and Enhanced Anti-Tumoral Activity. Chem Mater. 2016;28:4243-4258.
[15] Lu F, Wu SH, Hung Y, Mou CY. Size Effect on Cell Uptake in Well-Suspended, Uniform Mesoporous Silica Nanoparticles. Small. 2009;5:1408-1413.
[16] Kim HL, Lee SB, Jeong HJ, Kim DW. Enhanced tumor targetability of PEGylated mesoporous silica nanoparticles on in vivo optical imaging according to their size. RSC Adv. 2014;4:31318-31322.
[17] Kumar R, Thakur AK, Chaudhari P, Banerjee N. Particle Size Reduction Techniques of Pharmaceutical Compounds for the Enhancement of Their Dissolution Rate and Bioavailability. J Pharm Innov. 2022;17:333-352.
[18] Shekunov B Y, Chattopadhyay P, Tong H H Y, et al. Particle size analysis in pharmaceutics: principles, methods and applications. Pharmaceutical research. 2007;24:203-227.
[19] Caputo F, Vogel R, Savage J, et al. Measuring particle size distribution and mass concentration of nanoplastics and microplastics: addressing some analytical challenges in the sub-micron size range. Journal of colloid and interface science, 2021;588:401-417.
